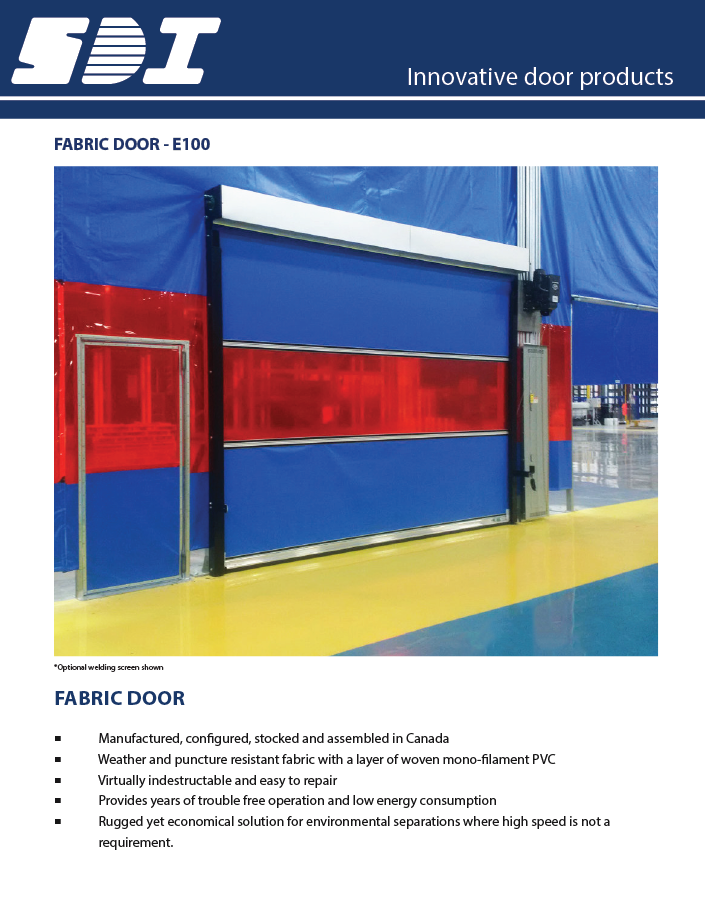

E100 Model with optional welding screen
Fabric Doors
SDI fabric doors are manufactured, configured, stocked and assembled in Canada using high-quality materials. Composed of weather & puncture resistant fabric with a layer of woven mono-filament PVC, the HS200 and E100 model fabric doors are virtually indestructible. The HS200 is a high-speed & high-cycle configuration suitable for busy facilities. Our fabric doors are great for wet-down locations and they are food-grade certified for use in food facilities. Featuring a breakaway bottom bar, these doors are easy and quick to repair without the use of special tools.
Door Features
Models HS200 & E100
- PVC coated polyester monofiliment fabric available in blue, orange, and black
- Aluminum bottom bar gives away at impact, allowing for easy repair
- Resilient and flexible at temperatures ranging from -15 ° C to + 90 ° C
- The airtight seal and minimal infiltration is ideal where heat loss or gain is a concern
- Clear PVC vision panel 36" height
| Model | HS200 | E100 |
| Open/Close Speed | 36"-18"/sec | Up to 12"/sec |
| Maximum Size | 14' x 14' | 14' x 14' |
| Header Clearance | 20" above clear opening | 18" above clear opening |
| Safety Edge | Air wave - Wireless | Air wave - Wireless |
| Steel Guides | Structural steel angle pre-finished black |
|
| Hood | Clear anodized aluminum | Galvanized finished steel |
| Bottom Bar | Aluminum - Mill finish |
|
| Control Panel | Nema 4 w/frequency drive | Open/Close/Stop Push button station |
| Fabric Weight | Blue & Orange - 45oz, Black - 40oz | |
| Motor HP | As required | |
| Limit Adjustment | Control panel / Encoder | Linear driven limit switch |
| Photocell | Optional | Standard |
Colours
Fabric Colour Options
Orange
Blue
Black
Guide & Headplate Finish Upgrades
Hot Dip
Galvanized
Galvanized
Powdercoated
Steel
Steel
Operation

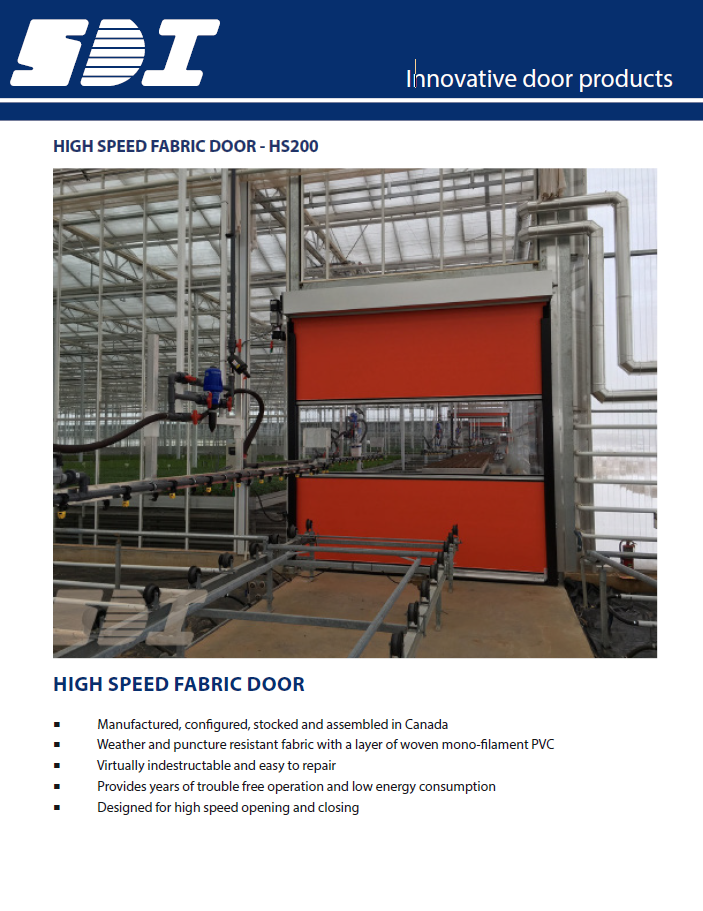

HS200 Operation
Safedrive Operator and Control panel
E100 Operation
3/4 HP Wall mounted gear head operator
Options
HS200 Safety Options:
Light Curtain - 36" or 72" Monitored
Safety sensor & activation devices
Loop detector
Photocell
Pull Cords
Warning Horn and/or Beacon
Motion Detector
Remote Control
