Insulated Sectional Doors
Steel sectional doors from SDI are an attractive solution where strength and insulation are required. These long-lasting door systems offer many years of service for your industrial or commercial facility. Manufactured on a continuous polyurethane production line utilizing the latest in rigid foam technology. High strength-to-weight ratio to ensure a strong and long-lasting door system. Manufactured, engineered, stocked and assembled in Canada. Designed to the highest standards to withstand the test of time in harsh Canadian climates. A wide range of door operators and controls are available to suit your application.
Door Features
- Insulated sections fabricated from prepainted, hot dip galvanized, steel sheet; with rigid polyurethane insulation core, CFC-1 1 free, face sheet stucco embossed and rib reinforced
- Sections thermally broken, steel-polyurethane-steel sandwich formed by continuous process
- Sections formed with ship lap joint and 16mm (16ga) galvanized steel end-caps
- Continuous internal reinforcement for hardware mounting
- Neoprene bulb weatherstrip with retainer. Two dual finned seals between sections (Optional track mount available)
|

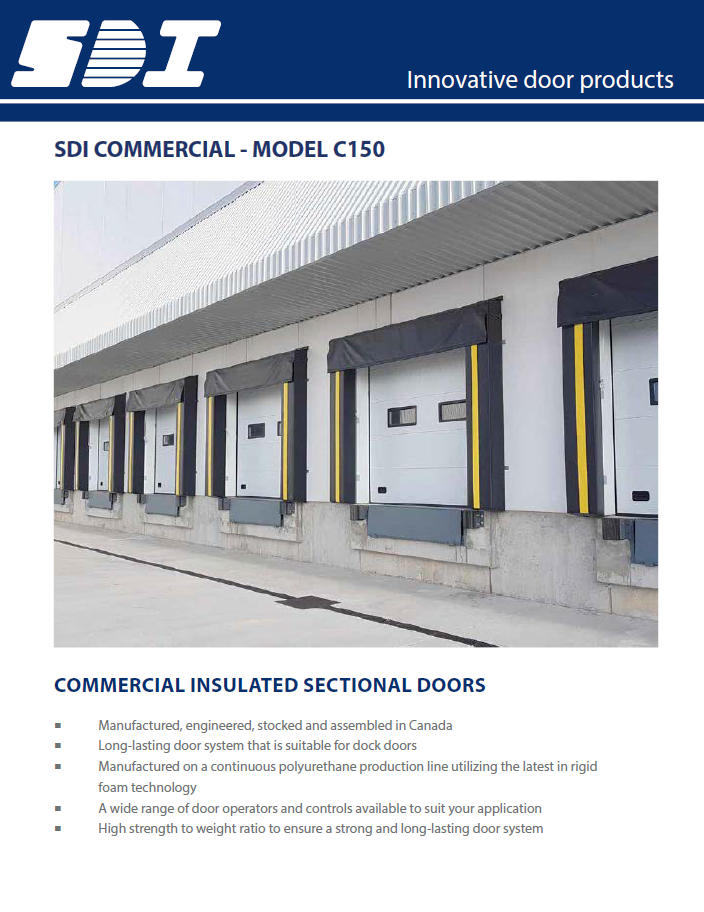

C150 |
|
| Section Thickness | 1 1/2" thick |
| R-Value | R-13.2 |
| Face sheet thickness | 0.016" (0.41mm) |
| Maximum Opening Width | 24'2" (8941mm) |
| Maximum Opening Height | 22' (6706mm) |
|
C175 |
|
| Section Thickness | 1 3/4" |
| R-Value | R-16 |
| Face sheet thickness | 0.019" (0.48mm) |
| Maximum Opening Width | 36'-2" (11024mm) |
| Maximum Opening Height | 22' (6706mm) |
|

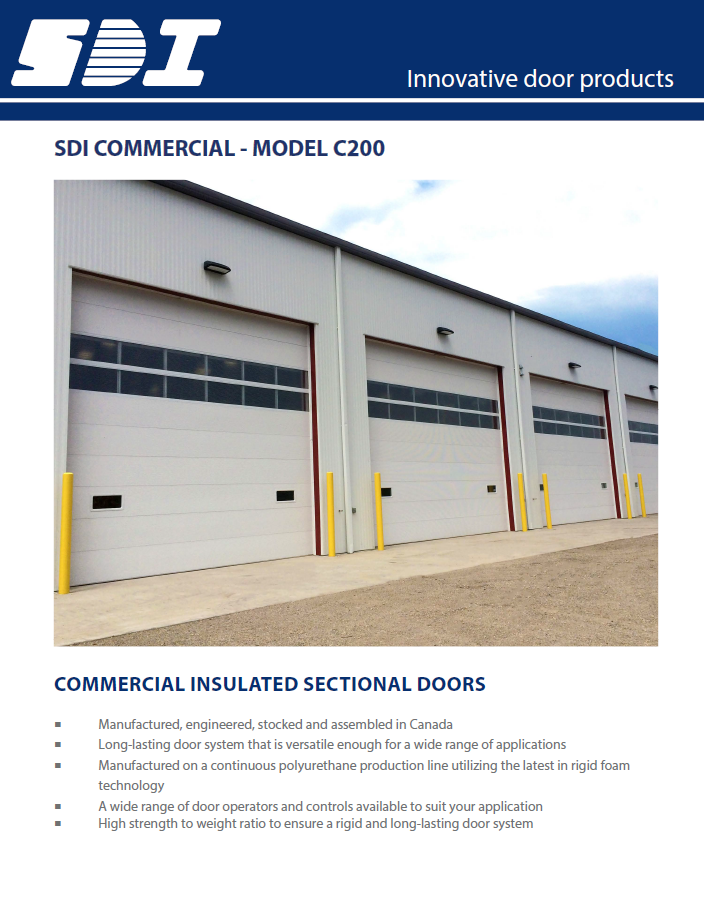

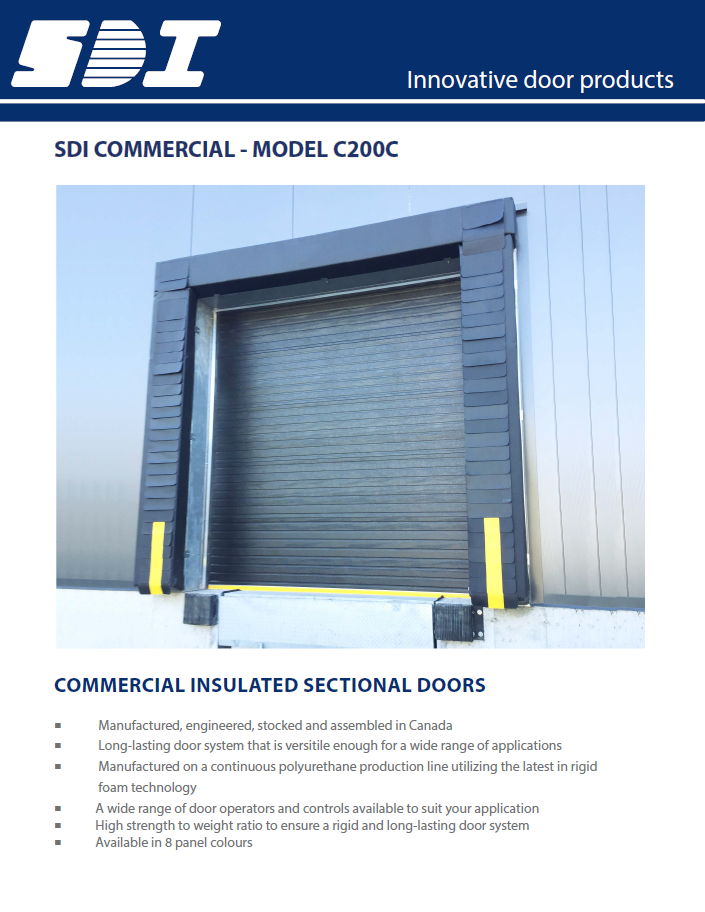

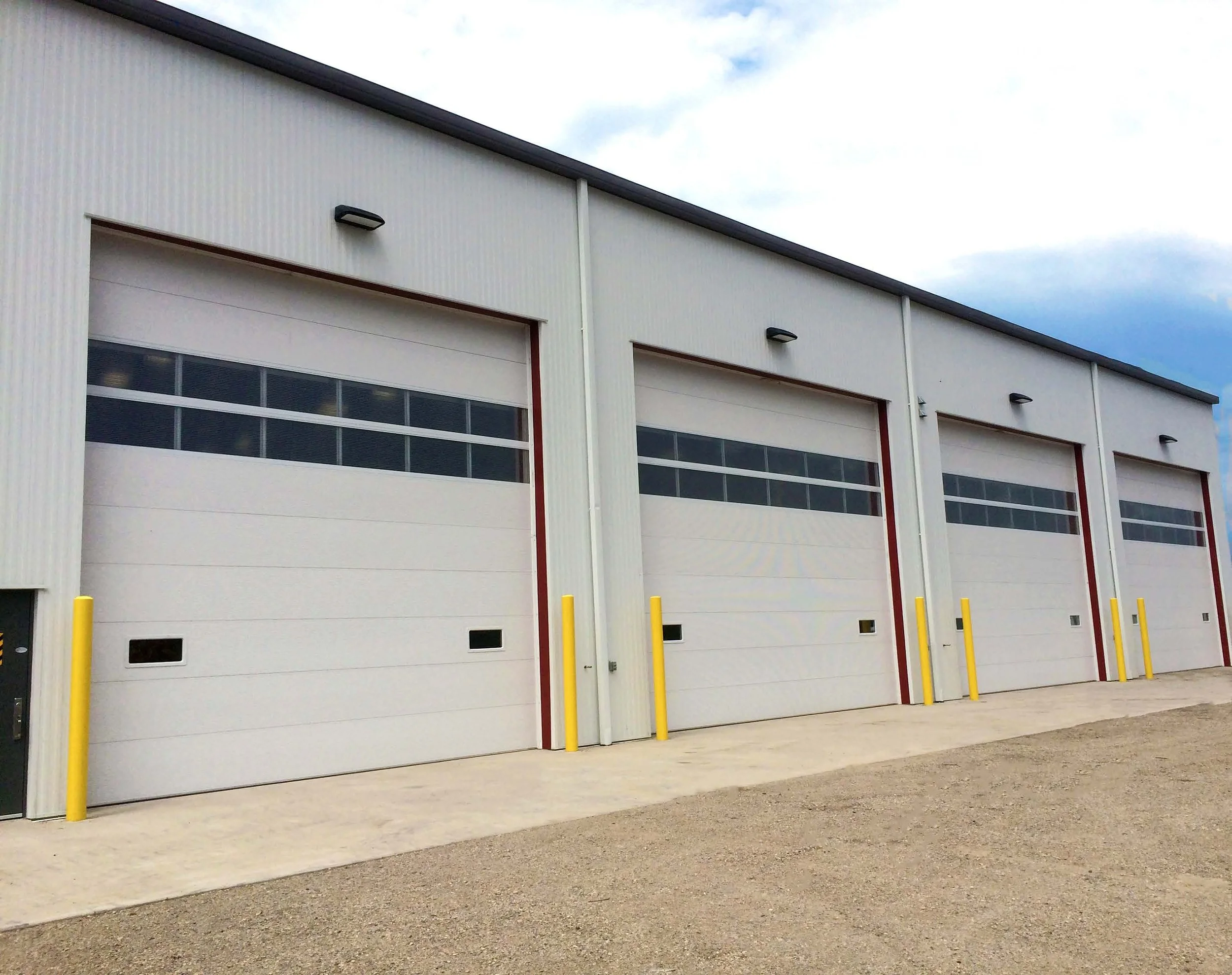

C200 / C200C (Available in 8 colours) |
|
| Section Thickness | 2" |
| R-Value | R-18.28 |
| Face sheet thickness | 0.016" (0.41mm) |
| Maximum Opening Width | 36'-2" (11024mm) |
| Maximum Opening Height | 22' (6706mm) |
|

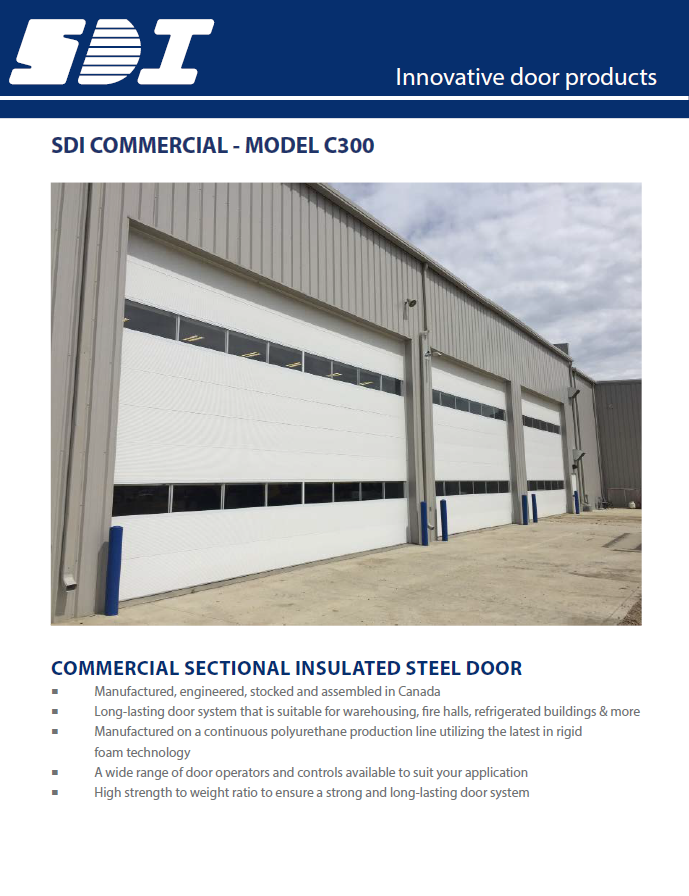

C300 |
|
| Section Thickness | 3" |
| R-Value | R-24.52 |
| Face sheet thickness | 0.016" (0.41mm) |
| Maximum Opening Width | 24'-2" (8941mm) |
| Maximum Opening Height | 22' (6706mm) |
Panels
Finishes
C150 & C175 Options

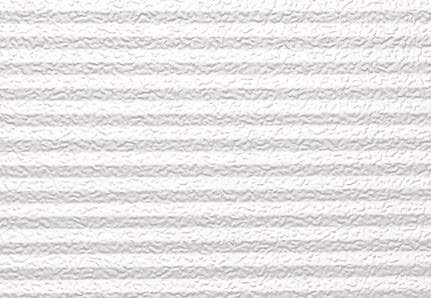

C200 Options
C200C Options
C300 Options
Glazing Sections
|
C150, C175, C200,C200C |
|
| Type B | 24" x 6 |
| Type CPL | 24" x 8" |
| Type D | 34" x 16" |
| Type E | 24" x 12" |
|
Fullview |
|
|
C300 |
|
| Type CPL | 2" X 8" |
| Type D | 34" x 16" |
| Type E | 24" x 12" |
|
Fullview |
|
Operation
- Push-up
- Chain Hoist
- Motor
Hardware Options
Download Clearance Diagrams
2" (50mm)
All door face hardware, tracks & mounting hardware and torsion assembly mounting brackets to have a zinc coating conforming to ASTM A653.
3" (75mm)
All door face hardware, tracks & mounting hardware and torsion assembly mounting brackets. Hot-dip galvanized with 380g./sq.m. (1.25 oz/sq.ft) -ASTM A525 - 9 lbs.
2" (50mm)
20mm (14ga) Commercial galvanized track, formed track 54mm (2 1/8”) overall outside dimension. Vertical tracks sloped for weather-tight closing; curves 305mm (12”) or 400mm (16”) radius, selection dependent on available headroom.
3" (75mm)
2.75mm (12ga) commercial galvanized track, formed track 80mm (3 1/8”) overall outside dimension. Vertical tracks sloped for weather-tight closing, 400mm (16”) radius.
2" (50mm)
2.0mm (14ga) thick commercially galvanized steel, rib enforced.
3" (75mm)
3.1mm (11ga) thick commercially galvanized steel, rib reinforced.
2" (50mm)
Optional at additional cost. Continuous track angle bolted adjustable type, fabricated from 2.0mm (14ga) commercially galvanized steel for full height of opening, fully adjustable to ensure weather-tight seal. Continuous angle to provide continuous track support for full opening height (combination angle and clip mounting not acceptable).
3" (75mm)
Optional at additional cost. Continuous track angle bolted adjustable type, fabricated from 2.4mm (13ga) commercially galvanized steel for full height of opening, fully adjustable to ensure weather-tight seal. Continuous angle to provide continuous track support for full opening height (combination angle and clip mounting not acceptable).
2" (50mm) & 3" (75mm_
Minimum 32mm x 32mm (1 1/4” x 1 1/4”) x 2.0mm (14ga) thick commercially galvanized perforated steel angles.
2" (50mm)
Steel rollers 48mm (1 7/8”) diameter with ten 6mm (1/4”) diameter ball bearings, 11mm (7/16”) diameter roller axles and inner and outer
ball races for hardened steel.
3" (75mm)
Steel rollers 73mm (2 7/8”) diameter with ten 8mm (5/16”) diameter ball bearings, 11mm (7/16”) diameter roller axles and inner and outer
ball races for hardened steel.
2" (50mm)
Fabricated from 2.4mm (13ga) thick commercially galvanized steel.
3" (75mm)
Fabricated from 3.1mm (11ga) thick commercially galvanized steel.
2" (50mm)
Helically wound torsion springs, manufactured from oil tempered spring wire, stress relieved, minimum 10,000 cycles. Aluminum diecast grooved drums and flexible galvanized aircraft cables, 7 x 19 construction, mounted on 25mm (1”) tubular steel OR 25mm (1”) CRS solid shaft keyed full length and mounted on ball bearings.
3" (75mm)
Helically wound torsion springs, manufactured from oil tempered spring wire, stress relieved, minimum 10,000 cycles. Aluminum diecast grooved drums and flexible galvanized aircraft cables, 7 x19 construction, mounted on 25mm (1") tubular steel OR 32mm (1 1/4") CRS solid shaft keyed full length and mounted on ball bearings.
2" (50mm) & 3" (75mm)
Interior Slide Bolt
