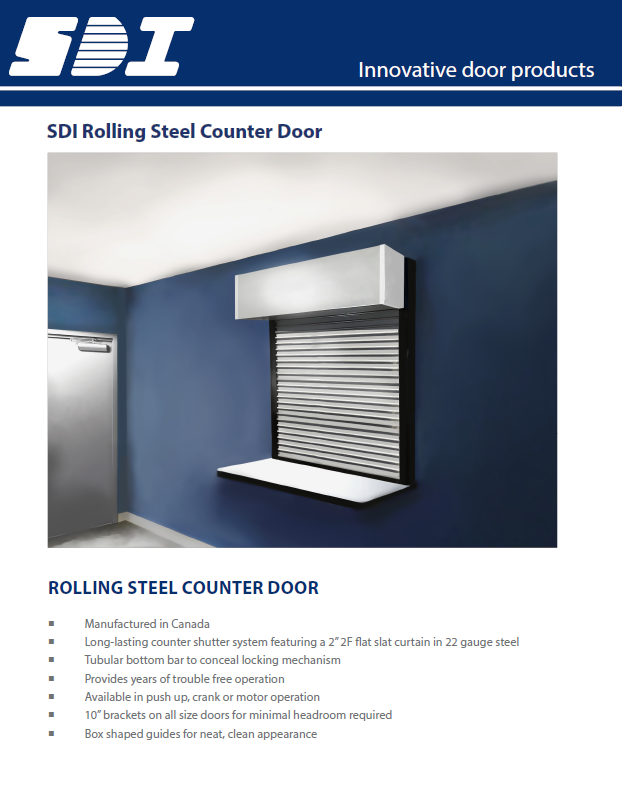

Counter Doors
SDI counter doors are a clean and attractive solution for adding security to your facility. All SDI counter doors use a compact 10” bracket on all door sizes. The simple box-shaped guides have a clean appearance and the low profile components make it ideal for concealing behind bulkheads for an even cleaner out-of-sight look. Mounting is suitable for all wall types including concrete, structural steel, gypsum board and more.
Door Features
- Rugged 2” flat slats 22 ga. steel
- Available in Grey prime and powdercoated in 180 standard colours
- Oil tempered torsion springs with high cycle life
- 10" brackets on all door sizes (minimal headroom required)
- Includes headplate end covers
| Maximum opening Width | 14' |
| Maximum opening Height | 9' |
Specifications
Model
Operation
Finish
Mounting
Download
BPC
Push Up
Galvanized
Between Jamb
BKC
Crank
Galvanized
Between Jamb
BMC
Motor
Galvanized
Face of wall
FPC
Push Up
Galvanized
Face of wall
FKC
Crank
Galvanized
Face of wall
FMC
Motor
Galvanized
Face of wall
Slat Options
- 2" Flat slats available in 22 ga. steel
Operation
- Push-up
- Motor
- Crank
Hardware Options
Safety Option
Bottom Sensing Edge
Locking Options:
Thumb turn lock
Keyed cylinder lock
Motor Operator
Motor Activation Option
Key Switch Open/Close
